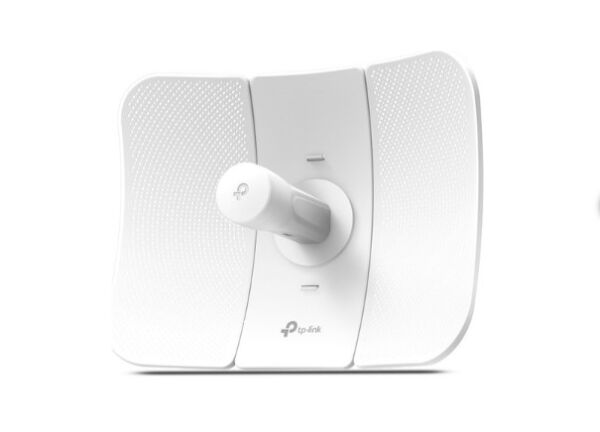

TP-Link CPE710 1200Mbps 5GHz 23dBi Outdoor Access Point
TP-LINK

TP-Link CPE710 1200Mbps 5GHz 23dBi Outdoor Access Point

0 Yorum
Kategori
AcessPoint / Router
Stok Kodu
405.000257
Stok Durumu
Mevcut Değil
Marka
TP-LINK
4.293,92 TL
Son kalan ürün: 0
Gelince Haber Ver
Ürün Bilgisi
Ürün Bilgisi
DONANIM ÖZELLİKLERİ
İşlemci Qualcomm 750MHz CPU, MIPS 74Kc
Bellek 128 MB DDR2 RAM, 16 MB Flash
Arabirim 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Güç Kaynağı Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC
Boyutlar ( W X D X H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Anten Kazancı 23 dBi
Anten Beamwidth 9° (Azimuth)/7° (Elevation)
Koruma 15 KV ESD Protection
6 KV Lightning Protection
Muhafaza Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
KABLOSUZ ÖZELLİKLERİ
Kablosuz Standartlar IEEE 802.11a/n/ac
Kablosuz Hızı Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frekans 5.15–5.85 GHz
İletim Gücü Max. 27 dBm (Adjustable power by 1dBm)
YAZILIM ÖZELLİKLERİ
Ağ Yapılandırma WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Kablosuz Konfigürasyonlar Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP
Yönetim Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
Sistem Araçları Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment
Sistem Düzeyindeki Optimizasyonlar Optimized IGMP Snooping / Proxy for multicast applications
POE ADAPTÖR ÖZELLİKLERİ
Boyutlar (H X W X D) 85.8×43.9×29.7 mm
Arayüzler 1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Buton Remote Reset Button
Güç Durum LEDleri Green
Giriş 100-240VAC, 50/60Hz
Çıkış 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Verimlilik >84.29%
Sertifikalar CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
DİĞERLERİ
Sertifika CE, FCC, RoHS, IP65, IC

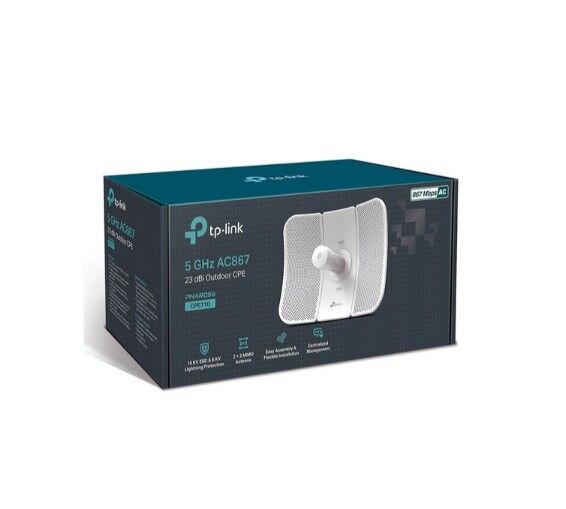

Paket İçeriği Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide
Sistem Gereksinimleri Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Ortam Operating Temperature: -40?~70? (-40?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
